Multi refrigerated display unit. Available for cured meats and dairy products (SL), fruit and vegetables (FV) and pre-packaged meat (C).

Suitable for

Pre-packed meat

Fruit & vegetables

Gastronomy

Dairy products

Cured meats

Snack

CONSTANT REFRIGERATION OF DISPLAYED PRODUCTS FOR GUARANTEED FRESHNESS.

GENERAL FEATURES

  • Technology, design and production “Made in Italy”
  • Compact but with a large display surface
  • Suitable for small, medium and large distribution
  • Optimization of the cleaning system
  • Tank made without using CFCs
  • Multiplexable
  • Easy installation, ready to use

Standard set-up

No. 2 double-glazed side walls (thickness 30 mm each).

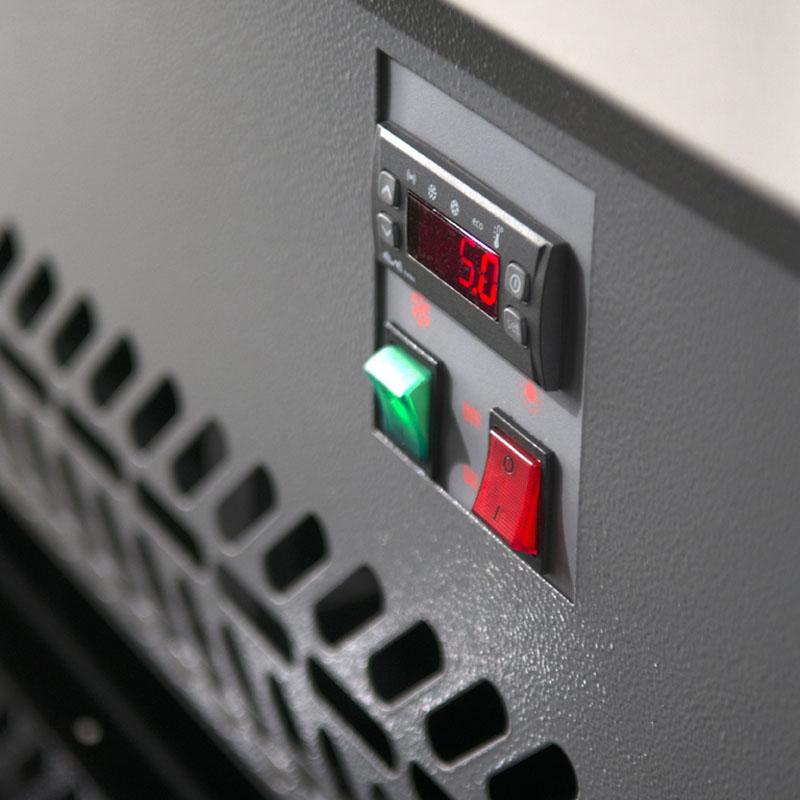

Electronic control panel.
Upper led lighting.
Automatic condensate water evaporation by means of stainless steel coil (for built-in unit version).
Manual self-winding night blind.
Off-cycle defrosting.
Electric defrosting only for C version (Pre-packed meat).
Valve refrigerating system for CG versions (built-in unit) and SG versions (without condensing unit).
Standard packaging: pallet + nylon.


Cold cuts and Dairy products versions (SL):
no. 3 shelves in non-toxic white painted sheet metal or in stainless steel (for stainless steel version), adjustable in height, equipped with price holder.

Fruit and Vegetables versions (FV):
no. 2 inclined shelves in non-toxic white painted sheet metal or in stainless steel (for stainless steel version), equipped with price holder, inclined upper mirror.
Pre-packed meat versions (C):
no. 3 shelves in non-toxic white painted sheet metal or in stainless steel (for stainless steel version), adjustable in height, equipped with price holder and tempered glass air deflector.



Typology of refrigeration
Ventilated (V)

Available versions
Withbuilt-inunit(CG), with automatic condensate recovery and evaporation system via stainless-steel coil.
With connection to remote compressor (SG).
R290

R290 (on request)


Available sizes
LENGHTS mm
100
L 1060
125
L 1310
187
L 1935
250
L 2560


DEPTH 912 mm
HEIGHT 2025 mm


Operating temperature
+ 3°C
+ 5°C
SL


SL Cold cuts and Dairy products

+ 6°C
+ 8°C
FV


FV Fruit and Vegetables

0°C
+ 2°C
C


C Pre-packed meat

- Testing data: temperature + 25°C / relative humidity 60%

Standard RAL colours

FRONT PANEL

1018
3020
5013
6026
9005
1028
2008
5024
6019
9010



INOX

Stainless steel internal, painted external.
